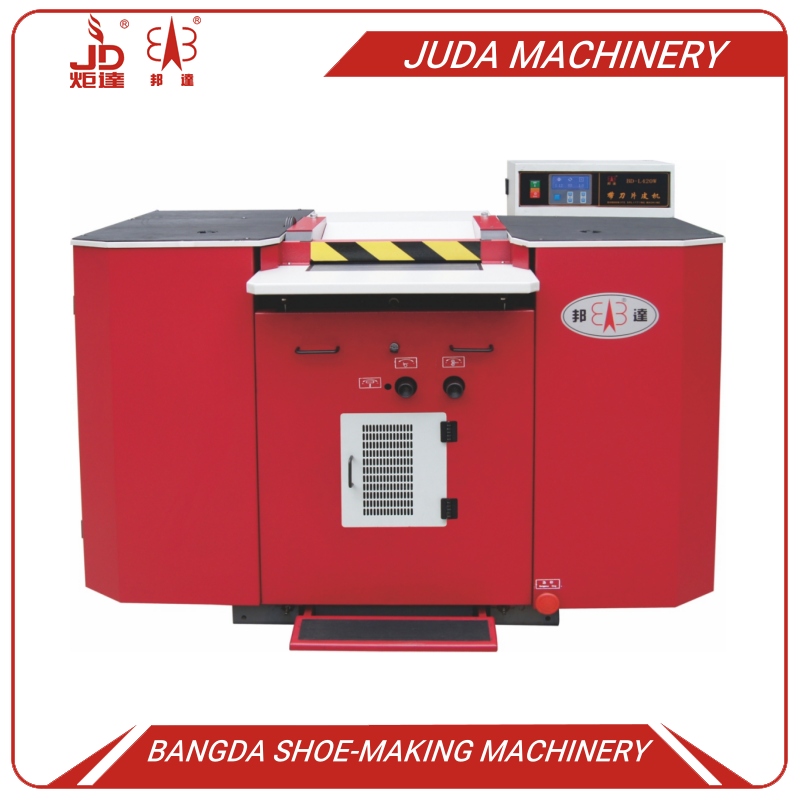

BD-L420W Plc Band Knife Splitting Machine
OnLine Service:
Product Details


Model BD-L420W
The max width of material 420mm
The max thickness of material 8mm
The min thickness of material 0.15mm with top bar
0.5mm with top feed roller
Feeding speed 1-20m/min
Specification of band knife 3570×50×0.6mm
Power of motor 5kW
Package size 1780×1130×1500mm
Net weight 720kg
Gross weight 810kg



USE

This machine is applied for thinning all kinds of soft and hard leathers with a width of 420mm and thickness below 8mm to required thickness in leather product industry, which makes the product quality higher, the workmanship more refined, and the competitiveness stronger.

CHARACTERS

1. Use PLC liquid crystal display to show the thickness of splitting; equipped with feeding infinitely variable speeds and accurate tally function.

2. New-style panel makes feeding work more convenient and efficient.

3. Equipped with automatic cutting quit function.

4. It has an automatic belt-entangling shut down system and an electronic phase automatic detection system.

5. Equipped with independent leather dust and sharpening dust suction device.

6. Equipped with an optical magnifying by which you can observe the sharpness of knife at any time.

7. Equipped with a single handle to automatically control start-up and adjust the sharpening device.

8. To make splitting more accurate, it can adjust the tool clearance automatically.

9. Automatic knife-feed positioning device makes adjusting knife unnecessary.

10. Extra large flywheel makes knife operation more stable and splitting work more accurate.

11. Accurate track makes flywheel move reliably and makes it more convenient and faster to change tool belt.

12. Mechanical parts are lubricated permanently.

13. Matched with molds which have various functions.


Zhejiang Juda Machinery Co., Ltd.-- Wenzhou Bangda Shoe-making Machinery Co., Ltd. is a specialized company that engages in developing, manufacturing and selling shoemaking ma-chines. Founded in 1990, during the 29 years' development, it constantly to make progress and innovation, provide the customers with best products and service persisting to the man-agement philosophy "Integrity based, quality utmost", now it has become the top manufac-turer in shoemaking industry.
With strong technological forces, it has not just a senior R&D team consisting of excellent technicians, but also a team of marketing elites and corporate management think tanks with a wealth of experience. It now owns more than 160 sets of processing equipment, including laser cutting machines, vertical machining centers, horizontal machining centers, CNC mac- hine tools and boring machines. The precise processing equipment, consummate processing technology, perfect testing system and management team have formed a rigorous scientific and technological system and a modern management system. In 2009, the itelligent edger-emoving machine was honored as the science and technology project by the Municipal Scie-nce and Technology Bureau, thus winning the "Technology Innovation Award" of the municipal technology innovation program. The main products are Band Knife Spliting Machine, Folding Machine, Eyelet Machine, Pearl Riveting Machine, Button Nailing Machine, Riveting Machine, Insole Machine, Cementing Ma-chine, Edge Trimming Machine and Lock Cylinder Assembly Machine, more than 50 types, which are widely used in shoe industry, garment industry, bag industry, leather wareand pack-age industry.linder Assembly Machine, more than 50 types, which are widely used in shoe industry, garment industry, bag industry, leather ware and package industry.





Q1: What is your terms of delivery?

A: We accept FOB, CIF etc. You can choose the one which is the most convenient or cost-effective for you.
Q2: What is your payment term?
A: We normally accept 30% deposit by TT in advance, balance before shipment. For more details, please contact us directly.
Q3: What is the lead time?
A: It usually takes 3-7 days to customize the moulds for you. We will deliver the machine within 1-3 days after we receiving the balance.
Q4: What is your shipping method?
A: We respect the client's choice, by sea, by air or by rail.
Q5: Do you accept the factory inspection?
A: Yes, we are very glad to accept customers to visit. We are a manufacture with a very rich R & D and production experience for more than 30 years.
Q6: Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
Q7: How long is the warranty period?
A: In addition to easy-damaged parts, our warranty period is one year.
Q8: I have never purchased this kind of machines from China, can I trust you?
A: Zhejiang Juda Machinery Co, Ltd. (Wenzhou Bangda Shoe-making Machinery Co, Ltd.) is a professional manufacturer that originally established in 1990. And at the beginning of our business, we exported our machines to EU and US. Now our machines are used in more than 100 countries around the world. In addition, we factory have BV certification, TUV certification, CE certification, ISO 9001 etc, so our quality and service are assured. Welcome to visit us at any time!
